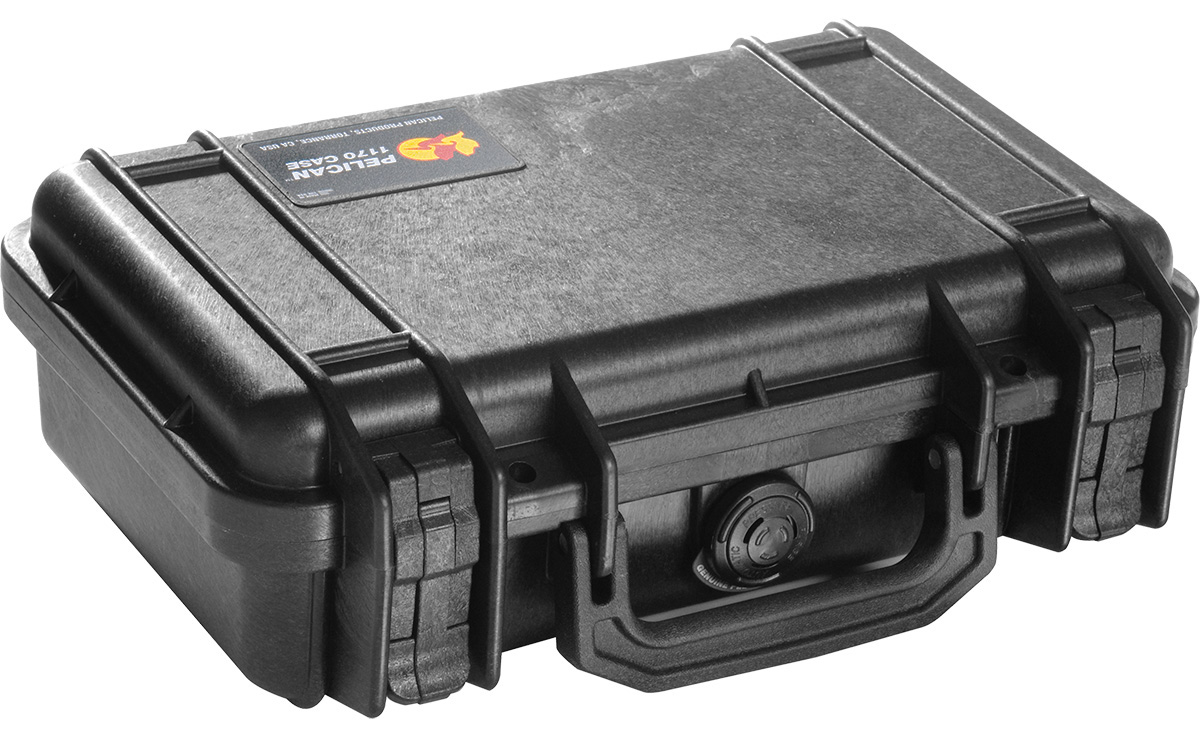

Pelican 1170 case

1170 Protector Case

Interior: 26.8 × 15.3 × 8 cm
Exterior: 29.6 × 21.2 × 9.6 cm

Made in the USA, these tough cases are designed with an automatic purge valve, that equalises air pressure, a watertight silicone O-ring lid, over-moulded rubber handles and stainless steel hardware.

  • The hand-held electronics protection solution

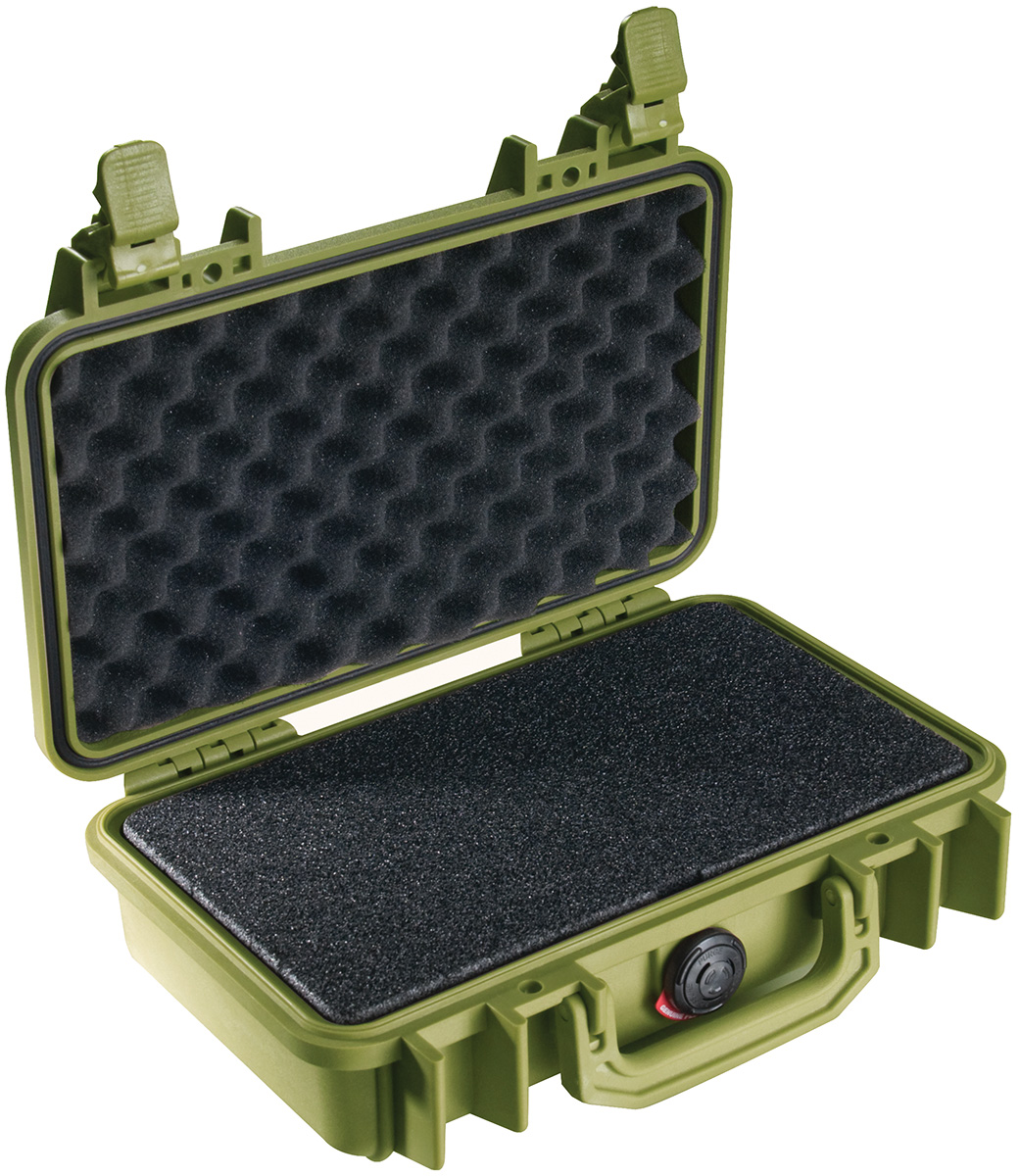

  • Pick N Pluck™ with convoluted lid foam
  • Watertight, crushproof, and dustproof
  • Open cell core with solid wall design – strong, light weight
  • Easy open Double Throw latches
  • Automatic Pressure Equalisation Valve – balances interior pressure, keeps water out
  • O-ring seal
  • Stainless steel hardware
SKU: PE1170 Categories: , ,

Description

CUSTOMISATION:

with foam
no foam
custom internal fit-out

COLOURS:

black, silver, yellow, orange, OD green, desert tan

SPECIFICATIONS:

Dimensions
Interior (L×W×D) 26.8 x 15.3 x 8 cm
Exterior (L×W×D) 29.6 x 21.2 x 9.6 cm

Measurements
Lid Depth 2.7 cm
Bottom Depth 5.3 cm
Total Depth 8 cm
Int Volume 0.003 m³

Weights
Weight With Foam 1 kg
Weight Empty 0.9 kg
Buoyancy 3.3 kg

Materials
Body Material – Polypropylene
Latch Material – ABS
O-Ring Material – Polymer
Pins Material – Stainless Steel
Foam Material – Polyurethane
Purge Body Material – ABS
Purge Vent Material – 3 Micron Hydrophobic Non-Woven

Temperatures
Minimum Temperature -40 ° C
Maximum Temperature 99 ° C

Approvals
Certifications – IP67
