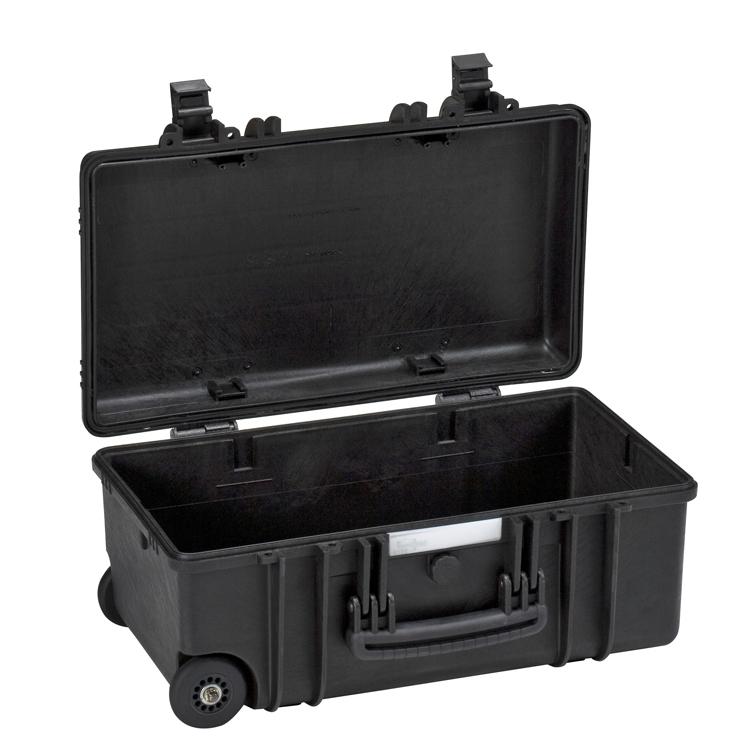

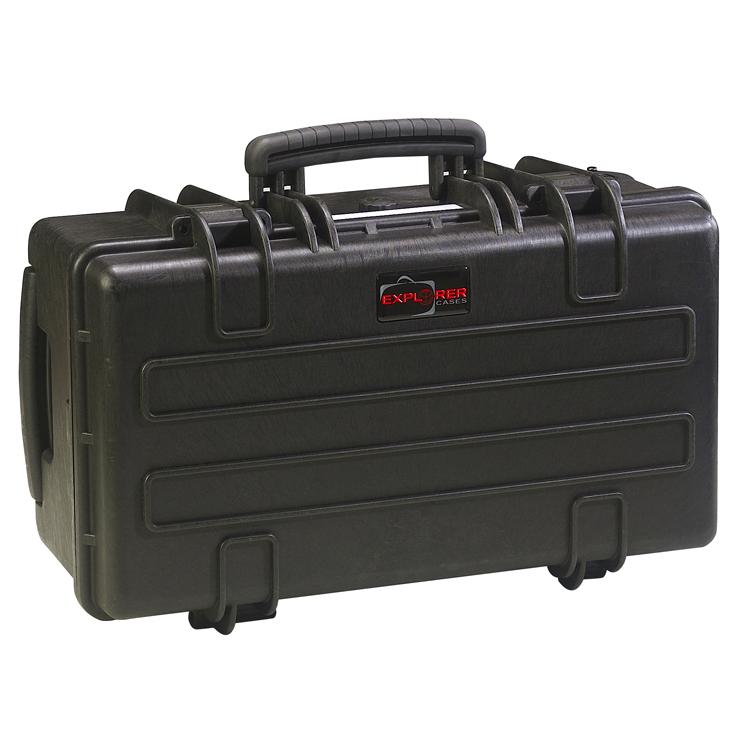

EXPLORER 5122 TRANSIT CASE

Dimensions:
External Dimensions (L x W x D): 546 x 347 x 247mm
Lid / Base Height: 50 + 167mm

Colours: black, orange

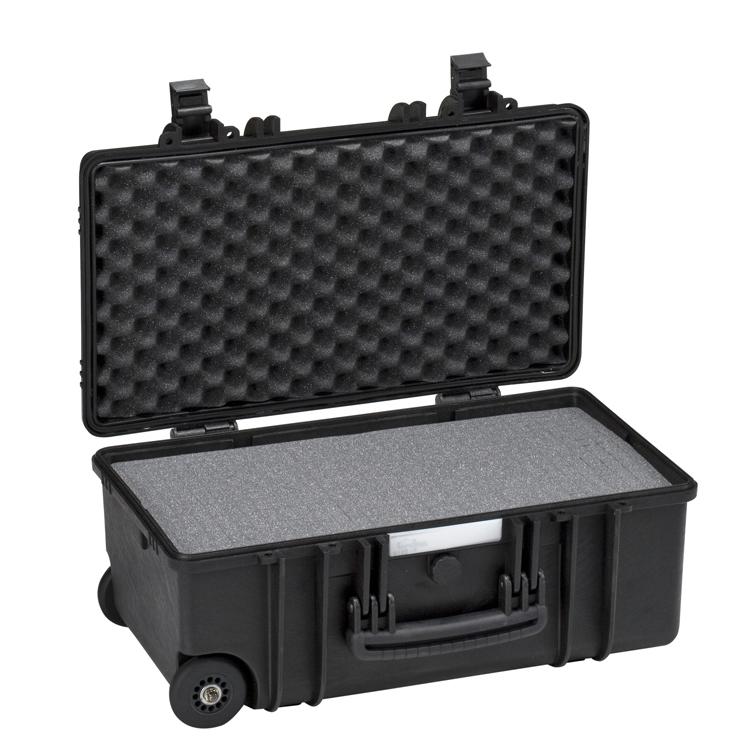

Options: empty, with pluck-able foam, full customisation service available

5122 Explorer Case Features:

  • PVC Waterproof I.D Removable Label
  • Sealing O-Ring
  • Soft Grip Rubber Handle – Load tested handle, reinforced with corrosion proof steel pins
  • Wheels With Bearings
  • Corrosion proof Metal Hinges With Lid Stay Features
  • Easy To Open Release Telescopic Handle
  • Fixing Points – Additional fixing points on the lid, available on certain models
  • Internal Slots – internal slots for optional panel mounting brackets or panel mounting rings
  • Jam Free Latches With Easy-Opening Mechanism
  • Lid Can Be Set To Slide-Off – By releasing the back screw, lid becomes set to slide-off when opened at 70degrees
  • Manual Pressure Release Valve – internal stop ring prevents valve from being completely extracted
SKU: EX5122 Categories: , ,

Description

Internal Dimensions:
Length – 517mm
Width – 277mm
Depth – 217mm
Lid – 50mm
Base – 167mm

External Dimensions:
Length – 546mm
Width – 347mm
Depth – 247mm

Weight Empty (No Foam): 6,00kg
Weight Full (With Foam): 7,00kg

Volume: 31Lt

Buoyancy: 21,50kg/max

Certification:
2002/95/EC Conformity with the Directive 2002/95/EC
DEF STAN 81-41 (level J)
IP67 Dustproof – Waterproof
STANAG 4280 (edition 2)
