iM2306 Storm Case

Interior: 43.2 × 16 × 15.7 cm
Exterior: 46.2 × 21.3 × 17 cm

The Pelican™ Storm Case™ has the same legendary DNA as our Pelican Protector Case, with one primary difference: A unique Press and Pull latch that locks automatically, but open with a light touch.

  • Two Press & Pull Latches
  • Lightweight Strong HPX® Resin
  • Watertight, crushproof, and dustproof
  • Double-layered, Soft-grip Handle
  • Vortex™ Valve
  • Two Padlockable Hasps
  • Powerful Hinges
SKU: PEiM2306 Categories: , ,

Description

CONFIGURATIONS:

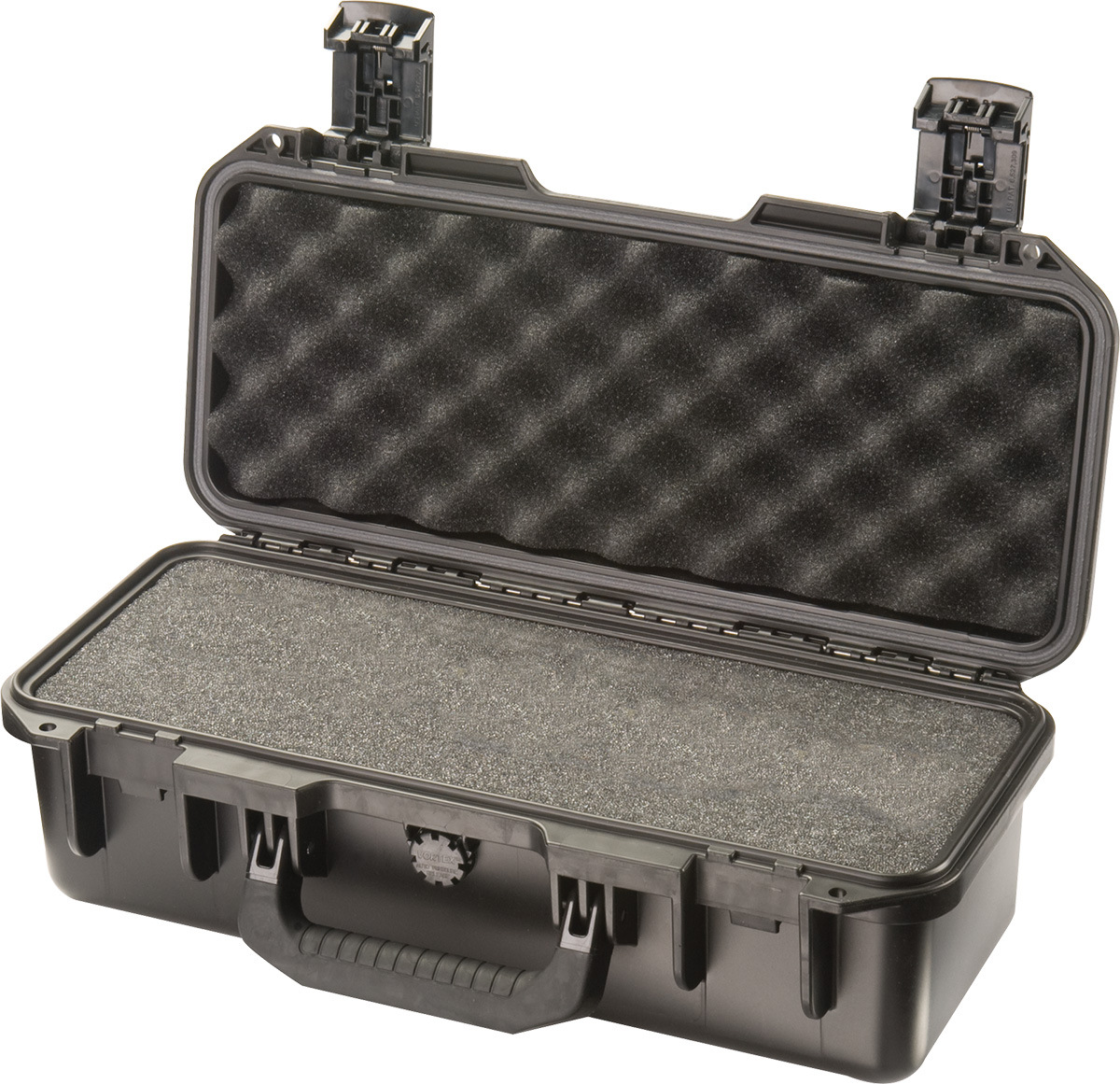

foam

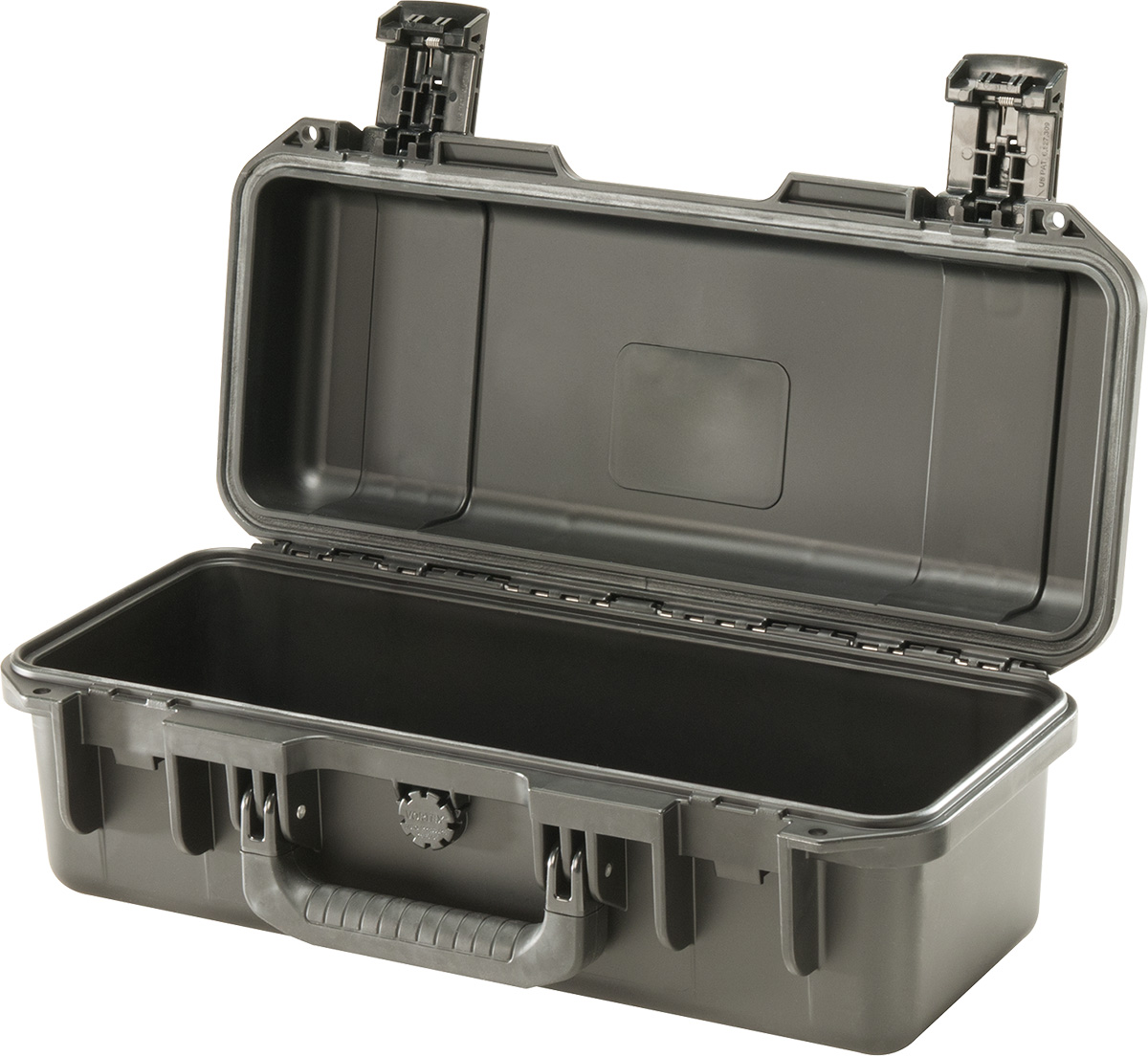

no foam
custom internal fit-out

COLOURS:

black

SPECIFICATIONS:

Dimensions
Interior (L×W×D) 43.2 x 16 x 15.7 cm
Exterior (L×W×D) 46.2 x 21.3 x 17 cm

Measurements
Lid Depth 5.1 cm
Bottom Depth 10.7 cm
Total Depth 15.7 cm
Int Volume 0.011 m³
Padlock Hole Diameter 8 mm

Weights
Weight With Foam 2.1 kg
Weight Empty 2 kg
Buoyancy 11 kg

Materials
Body Material – Injection Moulded HPX™ high performance resin
Latch Material – Valox – Polybutylene Terephthalate (PBT)
Latch (Alt) Material – Xenoy – Polyester/Polycarbonate blend
O-Ring Material – EPDM
Pins Material – Stainless Steel
Pins (Alt) Material – Aluminium
Foam Material – 1.3/1.35 polyester
Purge Body Material – Valox – Polybutylene Terephthalate (PBT)
Purge Body (Alt) Material – Xenoy – Polyester/Polycarbonate blend
Purge Vent Material – Gortex membrane

Temperatures
Minimum Temperature -29 ° C
Maximum Temperature 60 ° C

Approvals
Certifications – IP67
